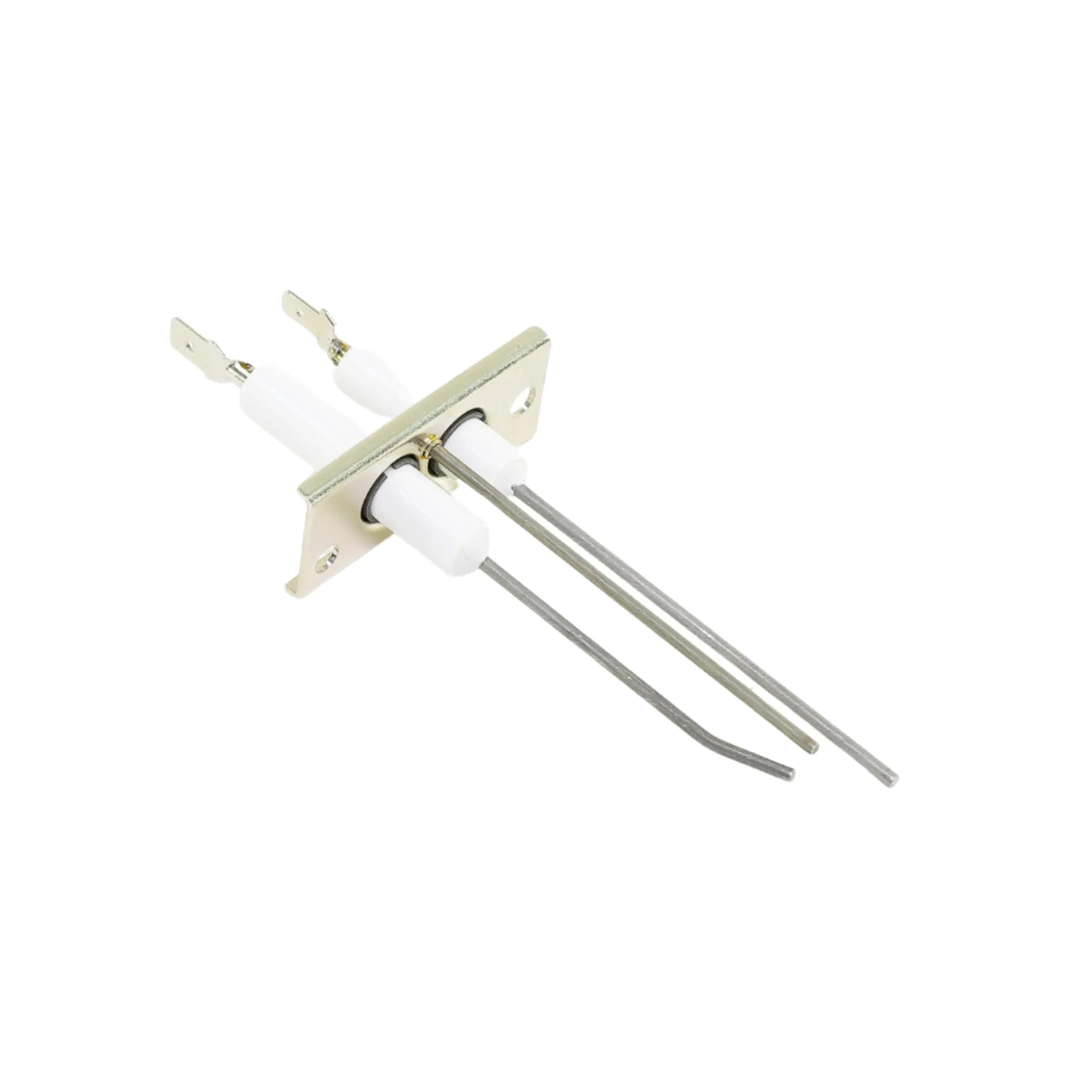

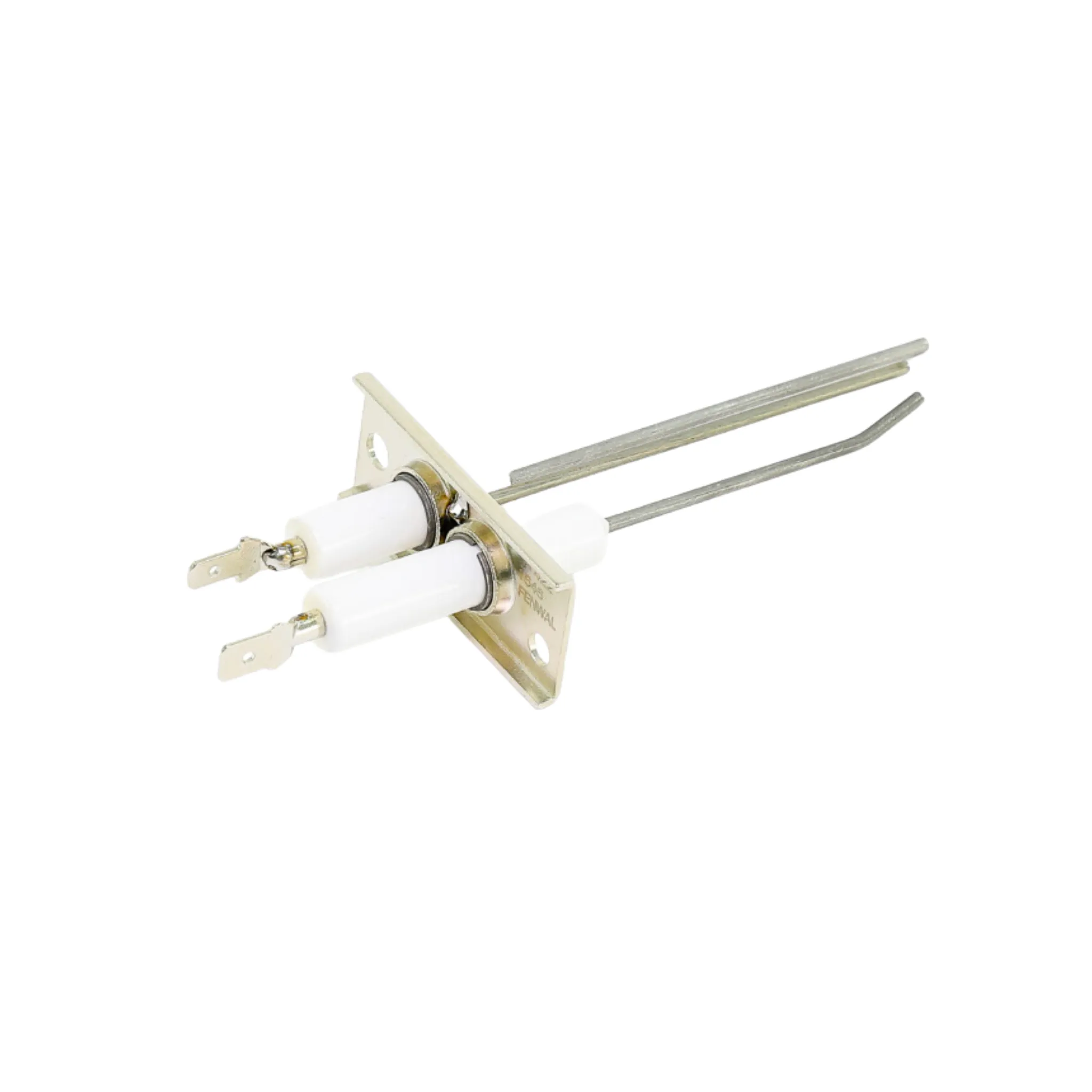

Fenwal uses only high-quality materials such as glazed Alumina ceramics and certified rod materials suitable for up to 2175° F (1190° C). Flame sensors are single rods used in the flame rectification circuit of the ignition control to confirm the presence (or absence) of flame. Position this sensor so that it is well exposed to the flame over some length (not just the tip) reliably complete the flame safeguard circuit.

Specifications:

Manufacturer: Fenwal
Manufacturer Part Number: 05-100000-422
Product Type: Ignitor Sensor
Dimensions: 2.7" x 6.5" x 2.55"
Weight: 0.15 lb
